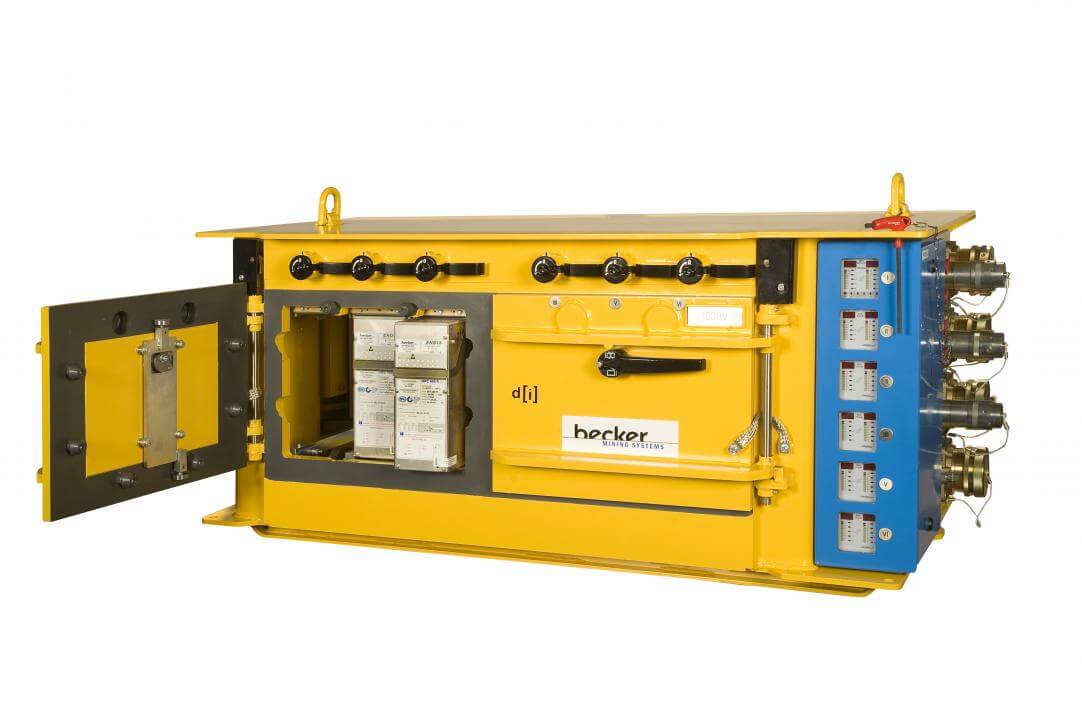

Electrical switchgear is a term that commonly defines all of the switching devices in a power control system. All devices associated with power control systems' control, metering, and regulation will be managed through switchgear and protection. The fuses in our home are what offer us a form of protection for switchgear but in order to protect a job site or sensitive electronic equipment, there is a need for full protection on electric switchgear for industrial purposes.
Electrical circuits including a high voltage electrical power system will need protective devices for switching and maintaining a high voltage system. These solutions are often delivered in switchgear and protection for power systems. The electrical switchgear that is developed in various forms is crucial to power system networks and in building a distribution solution to prevent short circuits and various faults.
Circuit breakers are responsible for sensing faulty connections and then offering a function to clear the fault in the power line. Provisional metering and regulating in these parameters protects electrical systems and this is cut out using a circuit breaker and meter. These forms of regulation watch over voltage transformers, protection relays, measuring instruments, electrical switches, fuses, arrestors and isolators ensuring they can all work in sync and shut down power systems as they are required.
Electric switches are required at every switching point along an electrical power system. These can be rated to various voltage limits and the various fault levels are responsible for tripping generating stations and load centers. The power system networks and electrical switchgear here is commonly associated with industrial work, commercial projects and industrial projects.
Switchgear protection is crucial to the protection of power systems and as it comes in various forms, the connection interruptions and the various monitoring in power systems offer levels of protection to keep the system running smoothly. Each of the relays in switchgear is monitored and checked for abnormalities that could trip a fault or cause issues. The power system parameters can be monitored to the phase angle, frequency, current, voltage and more. With all of these monitoring levels in place, it is possible to keep everything from high to medium to even low voltage electrical systems monitored and running safely.
The various switchgear works to include full circuit breaker and monitoring functions. With these devices watching over your electrical systems, it becomes easier for you to run your business safely and ensure consistent power generation throughout any system. While these types of systems may not be crucial in home power generation, in commercial power generation they are ideal in regulation for electrical systems.
Importance Of Proper Switchgear Maintenance
A combination of electrical components is used to create electrical power systems, also known as grids. A switchgear, which is a combination of circuit breakers, circuit fuses, and disconnects, allows power equipment to be de-energized, and faults can also be fixed. Large electrical lockers are common in manufacturing plants. Here is the location of the switchgear. Each piece of electrical equipment can be isolated by the switchgear which uses circuit breakers and fuse. This allows plant managers to de-energize the electrical system and fix any issues before they become serious.
There are two types of switchgear. High voltage switchgears can be used to supply large quantities of electricity, such as motors or large electrical equipment that requires more than 35,000 volts. Low voltage switchgear is used to run electrical equipment below 1,000 volts. You can find electrical switchgear on the outside or inside of buildings. If switchgear is found outside, it is kept in a weatherproof metal lock. It is crucial to prevent problems from occurring before any equipment is used by your company. A plant supervisor is responsible for ensuring that switchgears are in good working order. Nothing can be done if the power goes out to your plant. The power is cut off completely, and all work is stopped. It is important to realize that proper maintenance could have prevented a machine from breaking down due to a fault in its electrical circuit.
Protecting electrical machinery is possible with switchgears. A fault is caused when a breaker trips, causing an electric surge. The power can be diverted from another circuit to fix the problem. It's better to prevent problems with your switchgear and other electrical equipment than to react to power outages and make machines unresponsive.
Local companies are available to hire switchgears and other electrical components. Thermal imaging is one of their methods. The thermal imaging equipment can detect hot spots and fix them before they become a problem. Manufacturing plants save valuable time, money and resources by finding and fixing a problem before it becomes a problem.
Swartz Engineering Products
Swartz Engineering is not only the leading manufacturer of portable substations, we also offer other safe and reliable products. Our products include:
- Type 76 DC Relay
- Type 82 DC Relay
- Swartz Engineering’s Type 64 Ground Relay
- Type 32 Reverse Current Relay
- Type 150 DC
- CSM Shield Monitor
- Metal Oxide Surge Arrestors
- Transducers
- MVIS SL Slim-line Contactor
- Fully-tested Power Control Rooms
- Swartz Engineering’s Portable Substations
Contact Us
Proper manufacturer assembly in any switchgear or electrical power monitoring system is important to keeping every safety measure in place. With the help of these proper monitoring support systems from the right manufacturer, you can keep your industrial project well overseen and with the ideal type of switchgear.
If you are interested in learning more about electrical switchgear protection and the levels of protection that Swartz Engineering offers for your electrical switches, contact us today and we can provide you with an estimate for your switchgear technology.
