High-voltage power distribution is crucial in efficient and cost-effective electricity transmission over long distances. In this article, we will delve into the classifications, equipment, and significance of high-voltage power distribution, with a focus on the expertise of Swartz Engineering.
Voltage Classifications and Standards
Voltage classifications can vary depending on the governing authority and region. In the United States, organizations such as the National Electrical Code (NEC), the National Electrical Manufacturer's Association (NEMA), and the American National Standards Institute (ANSI) provide guidelines and standards for voltage classifications. ANSI standards C84.1-1989, as explained by the Electrical Engineering Portal (EEP), categorize voltages into five types:
- High (HV), Extra-High (EHV) & Ultra-High Voltages (UHV) - 115,000 to 1,100,000 VAC
- Medium Voltage (MV) - 2,400 to 69,000 VAC
- Low Voltage (LV) - 240 to 600 VAC
On the other hand, NEC voltage standards classify high distribution as 1000 to 4160 volts, medium distribution as 50 to 1000 volts, and low distribution as 0 to 49 volts.
High Voltage Transmission and its Benefits
High, extra-high, and ultra-high voltages are primarily associated with transmitting power from power plants. Operating at these voltage levels improves efficiency by using thinner and lighter-weight cables, reducing construction costs for towers and electrical lines. High voltages typically range from 115,000 to 230,000 VAC, while extra-high voltages span from 345,000 to 765,000 VAC. The United States transmits up to 500,000 volts on the high-voltage grid. China is pushing the boundaries with 800,000 VAC transmission and developing a 1,100,000 VAC system.

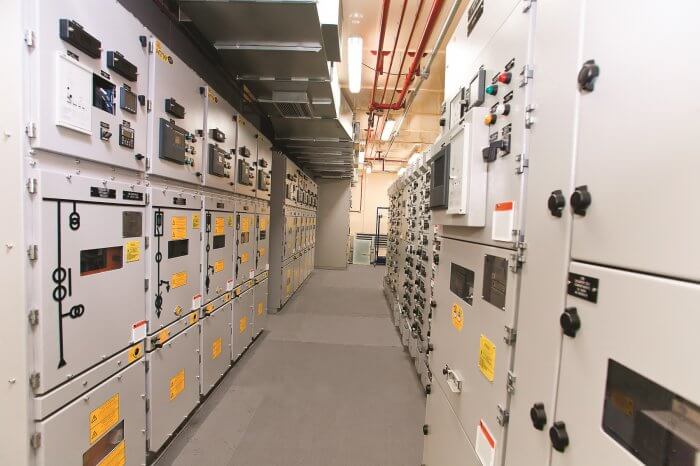

To facilitate high-voltage transmission, specialized switching, and distribution panels are required. Control rooms feature redundant switching capabilities that can be controlled remotely or manually for maintenance and testing. Additionally, sub-stations are vital in providing stepped-down voltage distribution to localized areas. In certain countries, such as China, ultra-high voltages (exceeding 765,000 to 1,100,000 VAC) are employed for long-distance transmission.
