Electric traction systems have revolutionized the transportation industry, enabling efficient, eco-friendly, and reliable modes of travel. From high-speed trains zipping across continents to the everyday metro systems in bustling cities, electric traction is the backbone of modern transportation. In this guide, Swartz Engineering delves into the intricacies of electric traction systems, their components, advantages, and the future of this transformative technology.
Understanding Electric Traction Systems
Electric traction systems refer to the technology used to propel and control vehicles that operate on electric power. These systems are integral to various forms of transportation, including trains, trams, trolleybuses, and electric vehicles (EVs). At their core, they convert electrical energy into mechanical energy, driving the vehicle forward.
Key Components of Electric Traction Systems
1. Power Source
- Electricity Supply: The primary source of energy for electric traction systems. This can come from overhead wires (catenary systems), third rail systems, or onboard batteries in the case of electric vehicles.
- Power Stations: Generate the electricity needed, whether from renewable sources like wind and solar or traditional methods like coal and gas.

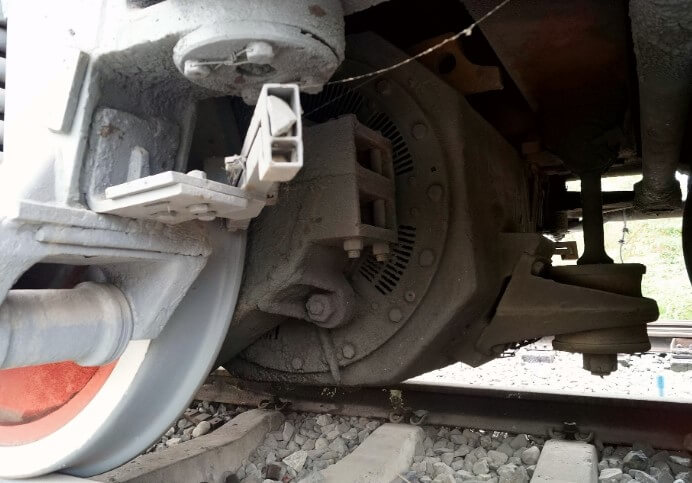

2. Traction Motors
- AC Motors: Commonly used in modern systems for their efficiency and reliability. They can be powered by alternating current (AC) from the grid.
- DC Motors: Traditionally used in older systems and some modern applications, driven by direct current (DC).
3. Control Systems
- Inverters and Converters: Convert electrical energy between AC and DC as required by the traction motors.
- Regenerative Braking: Allows the vehicle to recover energy during braking, improving overall efficiency.
4. Transmission Systems
- Gears and Axles: Transfer the rotational motion from the traction motors to the wheels.
- Drive Shafts: Connect the motor to the wheels in systems without direct drive.
5. Infrastructure
- Tracks and Guideways: Physical paths that guide the vehicle, crucial for rail systems.
- Charging Stations: For EVs, provide the necessary power to recharge batteries.
Types of Electric Traction Systems
Electric traction systems can be broadly categorized based on their application and power source:
1. Railway Systems

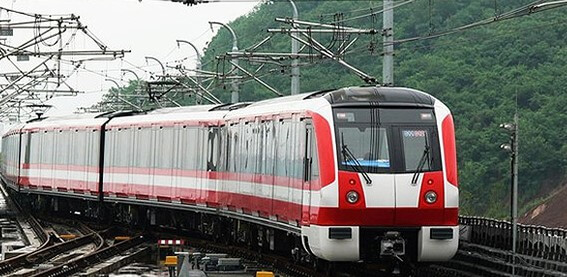

- Electric Trains: Operate on tracks with power supplied either through overhead catenary wires or a third rail.
- Light Rail and Trams: Used in urban environments, often sharing space with road traffic.
2. Road Systems
- Trolleybuses: Operate on regular roads but draw power from overhead wires.
- Electric Vehicles (EVs): Use batteries as their power source, making them versatile and independent of fixed infrastructure.
3. Magnetic Levitation (Maglev) Trains
- Utilize magnetic fields for propulsion and levitation, eliminating friction with the tracks and allowing for extremely high speeds.
GET IN TOUCH
The ultimate solution for reliable power control! call us at 276-285-3841
Advantages of Electric Traction Systems
Electric traction systems offer numerous benefits over traditional fossil fuel-powered systems:
1. Environmental Impact
- Reduced Emissions: Electric traction significantly cuts down on greenhouse gas emissions, especially when powered by renewable energy sources.
- Noise Reduction: Electric systems are quieter than their diesel or gasoline counterparts, reducing noise pollution in urban areas.
2. Efficiency
- Higher Energy Conversion: Electric motors are more efficient at converting energy into motion compared to internal combustion engines.
- Regenerative Braking: Recovers and reuses energy that would otherwise be lost, improving overall efficiency.
3. Operational Cost
- Lower Maintenance: Electric systems have fewer moving parts, reducing wear and tear and maintenance costs.
- Energy Cost Savings: Electricity is generally cheaper than diesel or gasoline, especially over long distances or high-frequency operations.
4. Performance
- Acceleration and Speed: Electric traction provides superior acceleration and speed control, essential for high-speed trains and urban transit systems.
- Load Handling: Electric systems can handle heavier loads with less strain compared to conventional engines.
The Evolution of Electric Traction Systems
The history of electric traction systems is marked by significant technological advancements and innovations:
Early Beginnings
The concept of electric traction dates back to the 19th century with the invention of the electric locomotive by Robert Davidson in 1837. Early systems used batteries as their power source, which were limited in range and efficiency.
Electrification of Railways
The late 19th and early 20th centuries saw the widespread adoption of electric traction in railways. The development of overhead wire systems and third rail technology enabled continuous power supply, making electric trains more viable for long-distance travel.
Post-War Advancements
Post-World War II, the focus shifted towards improving efficiency and reducing costs. The advent of semiconductor technology in the 1950s and 60s allowed for better control systems, paving the way for modern electric traction systems.
Modern Innovations
Today's electric traction systems are highly sophisticated, incorporating advanced electronics, automation, and energy storage solutions. High-speed trains, such as the Shinkansen in Japan and the TGV in France, showcase the potential of electric traction to revolutionize long-distance travel.
Challenges and Considerations in Electric Traction Systems
Despite their advantages, electric traction systems face several challenges that must be addressed:
1. Infrastructure Costs
- The initial cost of setting up electric traction infrastructure, such as overhead wires and charging stations, can be substantial.
- Maintenance of this infrastructure requires ongoing investment and expertise.
2. Energy Supply and Storage
- Reliable and sufficient power supply is crucial. Grid stability and the integration of renewable energy sources are ongoing challenges.
- Energy storage, particularly for EVs, needs further advancements to improve range and reduce charging times.
3. Environmental Impact of Manufacturing
- The production of components like batteries and electric motors can have a significant environmental footprint.
- Sustainable practices in manufacturing and recycling are essential to minimize this impact.
4. Technological Integration
- Integrating new technologies, such as automated driving and smart grids, with existing electric traction systems requires careful planning and investment.
The Future of Electric Traction Systems
The future of electric traction systems is bright, with continuous advancements promising even greater efficiency, sustainability, and convenience.
Innovations on the Horizon
1. Battery Technology
Advances in battery technology, such as solid-state batteries and fast-charging solutions, will enhance the performance and adoption of electric vehicles and rail systems.
Improved energy density and charging infrastructure will reduce range anxiety and operational downtime.
2. Smart Grids and IoT
The integration of smart grids and Internet of Things (IoT) technology will optimize energy use, improve system reliability, and facilitate predictive maintenance.
Real-time data analytics will enhance operational efficiency and passenger experience.
3. Automated and Autonomous Systems
The development of autonomous electric vehicles and trains will revolutionize transportation, offering safer, more efficient, and flexible travel options.
Automated systems will reduce the need for human intervention, lowering operational costs and improving service reliability.
4. Sustainable Practices
Increased focus on sustainable manufacturing and recycling practices will minimize the environmental impact of electric traction systems.
Circular economy principles will be applied to the production and disposal of components, particularly batteries.
GET IN TOUCH
The ultimate solution for reliable power control! call us at 276-285-3841
Electric Traction in Urban Mobility
Urban mobility is set to undergo significant changes with the rise of electric traction systems:
Electric Buses and Trams: These will play a crucial role in reducing urban pollution and providing efficient public transport options.
Shared Mobility Solutions: Electric traction will drive the growth of shared mobility solutions, such as electric scooters and bikes, offering flexible and eco-friendly travel options.
High-Speed Rail and Beyond
High-speed rail systems powered by electric traction are poised to dominate long-distance travel:
Expansion of High-Speed Networks: Countries around the world are investing in high-speed rail infrastructure, connecting cities and regions with fast, reliable, and sustainable transportation.
Maglev and Hyperloop: Emerging technologies like magnetic levitation (Maglev) and Hyperloop promise even faster and more efficient travel, potentially revolutionizing intercity and intercontinental transportation.
Conclusion
Electric traction systems are at the forefront of transforming transportation, offering a cleaner, more efficient, and sustainable alternative to traditional fossil fuel-powered systems. From urban mobility to high-speed rail, the applications of electric traction are vast and continually evolving. As we look to the future, the continued development and integration of advanced technologies will further enhance the capabilities and benefits of electric traction systems, driving us towards a more sustainable and connected world.
At Swartz Engineering, we are committed to pioneering innovations in electric traction systems, ensuring that our solutions meet the demands of the modern world and contribute to a greener, more efficient future. Whether through cutting-edge battery technology, smart grid integration, or sustainable practices, we are dedicated to advancing the field of electric traction and shaping the future of transportation.
