Electricity is an essential part of modern life, and substations play a crucial role in ensuring the smooth transmission and distribution of power. These facilities act as a hub between power generation plants and consumers, transforming voltage levels and managing the flow of electricity. At the heart of every substation lies a variety of substation equipment, each serving a distinct function to maintain stability, safety, and efficiency in the power grid. In this article, we’ll take an in-depth look at the essential components of substation equipment, their functions, and why they are critical for the reliability of electrical power systems.
Understanding the Role of Substations
Before diving into substation equipment, it’s essential to understand the role of substations. These installations serve multiple purposes in power transmission and distribution, including:
- Voltage Transformation – Converting high-voltage electricity from power plants into lower voltages suitable for consumer use.
- Power Distribution – Directing electricity to different regions, industrial sites, and residential areas.
- Protection and Control – Ensuring system reliability by isolating faults and preventing power surges.
- Load Management – Balancing power supply and demand to prevent overloads.
Substations consist of various components that work together to achieve these goals. Below, we explore the key substation equipment used in these facilities.
Essential Substation Equipment and Their Functions
1. Power Transformers
Power transformers are the backbone of any substation. They step up or step down voltage levels, enabling efficient transmission and distribution.
- Step-up Transformers increase the voltage to minimize energy loss during long-distance transmission.
- Step-down Transformers decrease voltage levels for safe distribution to homes and businesses.
Transformers come in different capacities and designs, depending on the substation’s purpose and voltage requirements.
2. Circuit Breakers
Circuit breakers are vital safety devices in substations. They protect the power system by automatically interrupting electrical flow when faults, such as short circuits or overloads, occur.
- Air Circuit Breakers (ACBs) – Used for low-voltage applications.
- Oil Circuit Breakers (OCBs) – Rely on oil to extinguish arcs during operation.
- SF6 Circuit Breakers – Utilize sulfur hexafluoride gas for high-voltage applications.
- Vacuum Circuit Breakers (VCBs) – Efficient for medium-voltage protection.
By quickly disconnecting faulty sections, circuit breakers help prevent damage and maintain system stability.
3. Switchgear
Switchgear includes electrical switches, fuses, and relays that control, protect, and isolate electrical circuits. It ensures the safe operation of the power system by:
- Enabling maintenance without affecting other circuits.
- Detecting faults and triggering circuit breakers.
- Protecting equipment from voltage fluctuations.
Switchgear can be classified as high-voltage (HV), medium-voltage (MV), and low-voltage (LV) depending on the application.
4. Busbars
Busbars are metallic strips or bars that conduct electricity within the substation. They serve as a central connection point for multiple circuits and equipment.
- Rigid Busbars – Used in high-voltage substations for enhanced stability.
- Flexible Busbars – Allow for expansion and movement in response to thermal variations.
A well-designed busbar system improves electrical efficiency and reduces energy loss.
5. Protective Relays
Protective relays monitor electrical conditions and detect faults before they cause significant damage. These devices work alongside circuit breakers to isolate faulty sections.
Types of protective relays include:
- Overcurrent Relays – Detect excessive current flow.
- Differential Relays – Identify differences in current between two points.
- Distance Relays – Measure impedance to determine fault locations.
Advanced digital relays offer improved accuracy and remote monitoring capabilities.
GET IN TOUCH
In a hurry? Call us at 276-285-3841
6. Instrument Transformers
Instrument transformers reduce high voltage and current levels to safe values for measurement and protection purposes. The two primary types are:
- Current Transformers (CTs) – Lower current levels for metering and protection.
- Voltage Transformers (VTs) – Reduce voltage for monitoring and relay functions.
These transformers allow substation operators to monitor electrical parameters without direct exposure to high voltages.
7. Lightning Arresters
Lightning arresters protect substation equipment from voltage spikes caused by lightning strikes and switching surges. They divert excess voltage safely to the ground, preventing damage to transformers, circuit breakers, and other components.
Common types of lightning arresters include:
- Metal-Oxide Varistor (MOV) Arresters – Highly efficient and widely used.
- Silicon Carbide Arresters – Used in older installations.
Proper placement of lightning arresters ensures maximum protection against transient voltage surges.
8. Capacitor Banks
Capacitor banks help maintain voltage stability by compensating for reactive power in the electrical grid. They enhance power factor correction and reduce energy losses.
- Shunt Capacitors – Improve voltage regulation.
- Series Capacitors – Increase transmission capacity over long distances.
By optimizing power quality, capacitor banks contribute to the efficiency of the electrical network.
9. Control Panels and SCADA Systems
Modern substations rely on Supervisory Control and Data Acquisition (SCADA) systems for remote monitoring and control. Control panels house relays, meters, and communication devices that enable operators to:
- Monitor real-time power flow.
- Detect faults and respond quickly.
- Control circuit breakers and switchgear remotely.
SCADA systems enhance operational efficiency and reduce the risk of power outages.
10. Grounding System
A grounding system is essential for substation safety. It provides a path for fault currents and protects personnel from electric shocks.
- Grounding Electrodes – Dissipate electrical surges into the earth.
- Grounding Conductors – Connect equipment to the grounding system.
Proper grounding reduces the risk of damage during electrical faults and lightning strikes.
GET IN TOUCH
In a hurry? Call us at 276-285-3841
The Importance of Substation Equipment in Power Reliability
Each piece of substation equipment plays a crucial role in ensuring the efficiency, safety, and reliability of the electrical grid. Without well-maintained substations, power distribution would be unstable, leading to frequent outages and equipment failures.
Key benefits of modern substation equipment include:
✔ Enhanced Safety – Preventing faults and protecting electrical systems.
✔ Efficient Power Distribution – Ensuring smooth energy flow to homes and businesses.
✔ Grid Stability – Reducing fluctuations and improving voltage regulation.
✔ Operational Flexibility – Enabling remote control and automation.
Regular maintenance and technological advancements continue to improve the performance of substation equipment, making power grids more resilient.
Conclusion
Understanding substation equipment is essential for appreciating how electricity reaches our homes and workplaces safely and efficiently. From transformers and circuit breakers to lightning arresters and SCADA systems, each component contributes to a reliable power infrastructure.
At Swartz Engineering, we specialize in designing and supplying high-quality substation equipment to meet the growing demands of the power industry. With cutting-edge technology and innovative solutions, we help ensure the stability of electrical networks worldwide. For more information about substation equipment and how we can support your power needs, contact Swartz Engineering today!
Products We Offer
Swartz Engineering strives to provide top-quality products to achieve our customer's needs. Our products include:
- Type 76 DC Relay
- Type 82 DC Relay
- Swartz Engineering’s Type 64 Ground Relay
- Type 32 Reverse Current Relay
- Type 150 DC
- CSM Shield Monitor
- Metal Oxide Surge Arrestors
- Transducers
- MVIS SL Slim-line Contactor

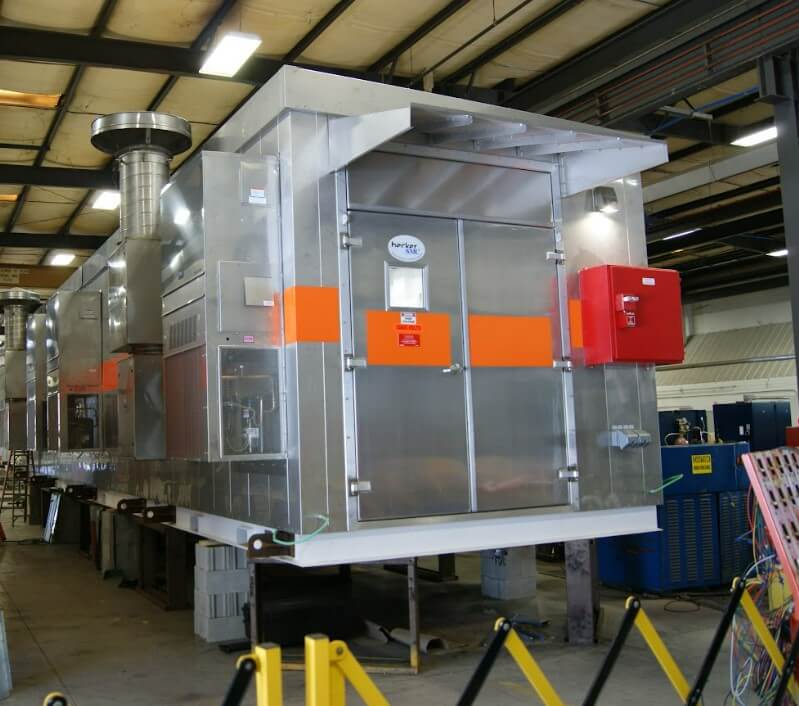

- Fully-tested Power Control Rooms

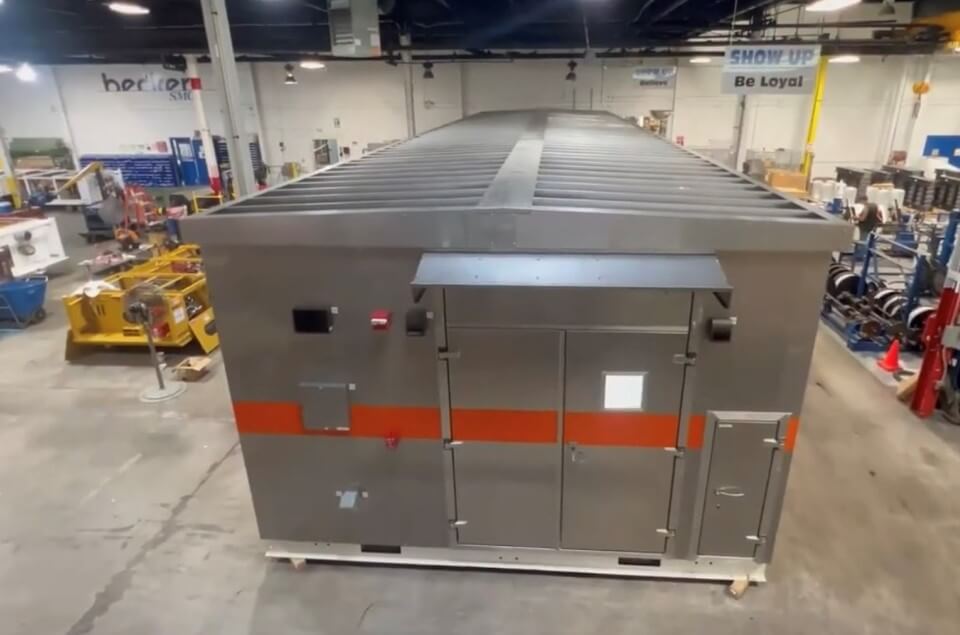

- Swartz Engineering’s Portable Substations
