The Swartz style watt transducer is a solid state and high performance unit which was designed to meet the requirements of all data acquisition and power supervisory control. The transducer is constructed to meet the needs of any complex environment and operate from a DC safe housekeeping battery supply powered by separate AC inverter technology.
This quality watt transducer is built on a FL angle base so that it can be mounted in any location. The orientation and the electrical connections can be adjusted through the screw terminal barrier and there is a gain and zero adjustment value once the system has been mounted. Voltage and current with these tools are built into the offset calibration and the current and voltage is multiplied to offer the highest accuracy in the watts output. The full wave FET chopper delivers a high voltage isolation between the fed circuits and the loop output. Through this device, we can see a bipolar output to the current source and a tracking of the input signal. The current feedback is located in the positive output and this delivers the best performance in monitoring power consumption.

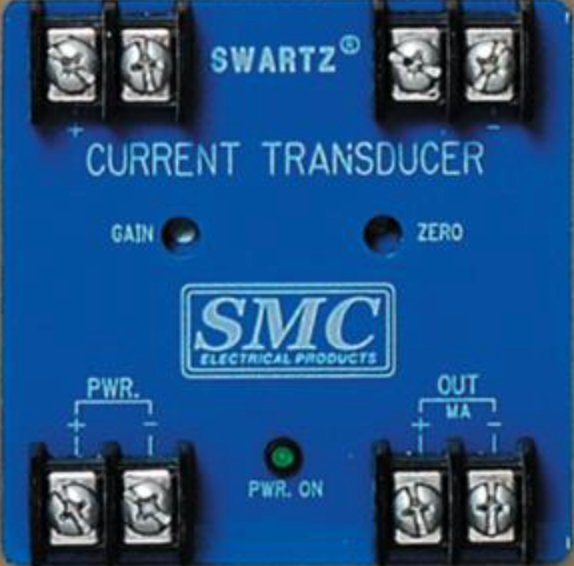

The current transducer that we produce is a solid state unit developed to meet the requirements for any supervisory control. The data acquisition and the construction of the transition substation environment operates from a solid state DC housekeeping battery supply and without the use of a separate AC inverter.
The current transducer includes a power on LED light for the best in monitoring support and a 4 quadrant multiplier for the Watt. Over-range capabilities bolster the results of the transducer and the device includes smooth saturation characteristics at range with DC inputs.
The bi directional support offers a high bandwidth to 1 khsz and the power supply will auto compensate for a wide range of DC inputs. The magnetic link design offers a no aging deficiency or temperature drift technology.
Three way isolation in the power supply, input circuit and output circuit ensures that the device will offer up the best level of power supply monitoring and isolation on the market. The input on the device is capable of +100 Mv to the full range ensuring that this is a device capable of running in high power solutions across any electrical grid. Whether you are seeking a current transducer that is going to meet your needs in heavy equipment and mining or you need a transducer that will work in the power generation field, we can make a system that can withstand the best in power generation and the finest in power monitoring support. With the help of our current transducer, we can mount a system that will offer the best in performance and offer controls in data acquisition as well.
Contact us today if you are in need of a quality transducer construction for your business. We will customize and build the solid state transducer that works for your needs and a unique solution for your monitoring.
